Heliconius Kluk 1780 TS = Papilio charithonia L., 1767 (designated by Hemming, 1933)

longwings or passion-flower butterflies

Margarita Beltrán, Andrew V. Z. Brower, and Chris Jiggins
Click on an image to view larger version & data in a new window
Click on an image to view larger version & data in a new window
taxon links [up-->]Heliconius nattereri [up-->]Heliconius peruvianus [up-->]Heliconius sara [up-->]Heliconius hecalesia [up-->]Heliconius luciana [up-->]Heliconius atthis [up-->]Heliconius besckei [up-->]Heliconius elevatus [up-->]Heliconius doris [up-->]Heliconius ethilla [up-->]Heliconius pardalinus [up-->]Heliconius hewitsoni [up-->]Heliconius pachinus [up-->]Heliconius lalitae [up-->]Heliconius hierax [up-->]Heliconius charithonia [up-->]Heliconius telesiphe [up-->]Heliconius hecuba [up-->]Heliconius sapho [up-->]Heliconius egeria [up-->]Heliconius burneyi [up-->]Heliconius clysonymus [up-->]Heliconius eleuchia [up-->]Heliconius ismenius [up-->]Heliconius wallacei [up-->]Heliconius leucadia [up-->]Heliconius congener [up-->]Heliconius hortense [up-->]Heliconius tristero [up-->]Heliconius ricini [up-->]Heliconius erato [up-->]Heliconius demeter [up-->]Heliconius himera [up-->]Heliconius timareta [up-->]Heliconius numata [up-->]Heliconius hermathena [up-->]Heliconius xanthocles [up-->]Heliconius cydno [up-->]Heliconius antiochus [up-->]Heliconius heurippa [up-->]Heliconius hecale [up-->]Heliconius melpomene [up-->]Heliconius astraea Phylogenetic position of group is uncertainPhylogenetic position of group is uncertainPhylogenetic position of group is uncertainPhylogenetic position of group is uncertain[down<--]Heliconiini Interpreting the tree
close box

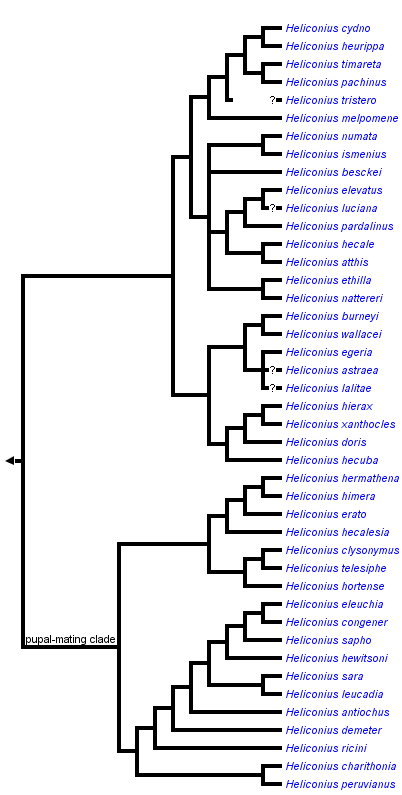

This tree diagram shows the relationships between several groups of organisms.

The root of the current tree connects the organisms featured in this tree to their containing group and the rest of the Tree of Life. The basal branching point in the tree represents the ancestor of the other groups in the tree. This ancestor diversified over time into several descendent subgroups, which are represented as internal nodes and terminal taxa to the right.

example of a tree diagram

You can click on the root to travel down the Tree of Life all the way to the root of all Life, and you can click on the names of descendent subgroups to travel up the Tree of Life all the way to individual species.

For more information on ToL tree formatting, please see Interpreting the Tree or Classification. To learn more about phylogenetic trees, please visit our Phylogenetic Biology pages.

close box
Containing group: Heliconiini

Introduction

The Heliconius butterflies are the most speciose genus within the Heliconiini, displaying a dramatic diversity of colour patterns at species and sub-species level. They are also famous for Müllerian mimicry, with many species converging on a common wing pattern where they live together. Heliconius communities commonly consist of several ‘mimicry rings’, groups of species that share a common pattern.

Click on an image to view larger version & data in a new window
Click on an image to view larger version & data in a new window

Colour pattern diversity of H. numata (top two rows), and H. melpomene (third row) with its co-mimic H.erato (bottom row).

Heliconius butterflies have two unique, derived ecological traits that may have facilitated rapid adaptive radiation: pollen feeding and pupal-mating behaviour (Gilbert, 1972). Adult butterflies systematically collect pollen from flowers, which they masticate on the proboscis to dissolve out amino acids. This allows caterpillars to develop relatively rapidly (since they do not need to store nutrients for egg and sperm production), and allows adults to have a greatly extended lifespan – up to 8 months – in the wild.

Click on an image to view larger version & data in a new window
Click on an image to view larger version & data in a new window

Heliconius butterflies with proboscis bearing pollen collected from flowers. The diets of most Lepidoptera are very limited in nitrogenous compounds, and pollen feeding is thought to increase longevity and egg production in Heliconius butterflies. Images ©

The pollen-feeding behaviour centres around a group of vines in the Cucurbitaceae, Psiguria and Gurania. This is a tight plant-pollinator relationship in which the butterflies are major pollinators for the plants and the plants major food resources for adult maintenance and egg production. 80% of a female's egg production come from amino acids that come from pollen she collects. Only 20% comes from amino acids acquired by the caterpillars feeding on passion vines. In most butterflies and moths, 100% of eggs derive from the efforts of the larval stage, and eggs are laid in a quick pulse after adult emergence. In Heliconius, eggs are laid as they are manufactured over the adult's long lifespan (Gilbert, 1972). The butterflies learn the locations of pollen plants and establish home ranges based on pollen foraging routes. It appears that the pollen plants are more significant than larval hosts in determining a female's assessment of the habitat. Thus, as long as she knows the locations of a network of pollen plants, she will stay in the area, even during periods when new shoots of passion vine hosts are temporarily not available due to weather or defoliation by Heliconius or other competing herbivores. So while most herbivorous insects disperse away when suitable oviposition sites are scarce, Heliconius females are content to stay put as long as the mutualist plant produces pollen (which is year-round). Moreover the pollen promotes a long reproductive life so that females can wait many weeks for the opportunity to resume egg-laying (Ehrlich & Gilbert, 1973).

Heliconius sapho male sitting on a female pupa. Mating takes place as the female begins to eclose, and females mate only once. ©

A second unusual trait found in some Heliconius species is a unique mating behaviour known as pupal-mating. Males of certain species search larval food plants for female pupae. The males then sit on the pupae a day before emergence, and mating occurs the next morning, before the female has completely eclosed (Gilbert, 1976; Deinert et al. 1994). Various kinds of pupal-mating occur scattered across several insect orders (Thornhill & Alcock, 1993); in passion-vine butterflies almost half the Heliconius species (42%) are pupal-maters (Gilbert, 1991, pupal mating clade marked in the cladogram above).

Gilbert (1991) suggested that pupal-mating might play an important role in the radiation of Heliconius as well as in the packing of Heliconius species into local habitats. Pupal-mating might enhance the possibility of intrageneric mimicry because in many cases, mimetic species pairs consist of a pupal-mating and a non pupal-mating species. The strikingly different mating tactics of these groups could allow phenotypically identical species to occupy the same habitats without mate recognition errors. Second, this mating tactic may influence host-plant specialisation, as it has been suggested that pupal-mating species may displace other heliconiines from their hosts by interference competition (Gilbert, 1991). Males of these species sit on, attempt to mate with, and disrupt eclosion of other Heliconius species of both mating types encountered on the host plant. This aggressive behaviour may prevent other heliconiine species from evolving preference for host plants used by pupal-mating species.

Etymology: Heliconius signifies dwellers on Mount Helicon (Turner, 1976) (see each species for more information). Helicon is a mountain in southern Greece, in Boeotia, regarded in ancient Greece, as the source of poetry and inspiration. From it flowed the fountains of Aganippe and Hippocrene, associated with Muses. The nine Muses are daughters of Zeus and Mnemosyne, the goddess of memory. The Muses sat near the throne of Zeus, king of the gods, and sang of his greatness and of the origin of the world and its inhabitants and the glorious deeds of the great heroes. From their name words such as music, museum, mosaic are derived (Muses).  The nine muses are:

  1. Calliope  Epic and heroic poetry and the head muse
  2. Clio  History
  3. Erato  Love-poetry
  4. Euterpe  Music and Lyric poetry
  5. Melpomene  Tragedy
  6. Polyhymnia  Sublime hymns or serious sacred songs
  7. Terpsichore  Dancing and choral song
  8. Thalia  Comedy and idyllic poetry
  9. Urania  Astronomy
Linnaeus (1758) named various butterflies (all in the genus Papilio section "Heliconius") after the muses, all of which have longish wings, occur in the neotropics (except two) and participate in mimicry complexes, but most of which are not currently placed in the genus Heliconius and two of which are not even in Nymphalidae. These are:
  1. Stalachtis calliope (L.), 1758 (Riodinidae)
  2. Eresia clio (L.), 1758 (Nymphalinae)
  3. Heliconius erato (L.), 1758
  4. Stalachtis euterpe (L.), 1758 (Riodinidae)
  5. Heliconius melpomene (L.), 1758
  6. Mechanitis polymnia (L.), 1758 (Ithomiini) (a variant spelling of Polyhymnia)
  7. Acraea terpsichore (L.), 1758 (Acraeini, African)
  8. Actinote thalia (L.), 1758 (Acraeini)
  9. Taenaris urania (L.), 1758 (Amathusiini, Australasian)

Characteristics

Heliconius are recognized by their large eyes, long antennae, characteristic elongate wing-shape, teardrop-shaped hindwing discal cell, and distinctive colour patterns. The hostplants are all Passifloreae, and there is some phylogenetic association between species groups of Passiflora and the Heliconius species that feed on them (Benson et al., 1976; Brower, 1997) (see each species for more details).

Discussion of Phylogenetic Relationships

For discussion of the monophyly of the genus as presented here and relationships among heliconiine genera, see the Heliconiini page.  Within Heliconius the relationships presented here are based on molecular sequence data for 3 mtDNA and 4 nuclear gene regions (Beltran et al. 2007). There is also a highly supported monophyletic ‘pupal-mating clade’ suggesting that pupal mating behaviour evolved only once in the Heliconiina (see tree above).  Within Heliconius, the absence of a signum on the female bursa copulatrix is a morphological character that defines the pupal-mating group (Penz, 1999).

Geographic Distribution

Members of the genus are found from the southern United States throughout Central and South America and the West Indies, with the greatest diversity of species in the Amazon Basin (Emsley, 1965; DeVries, 1987).

Heliconius butterflies show a continuum of geographic divergence and speciation; they are unpalatable and exhibit inter- and intraspecific diversification of colour and patterns. Bates’ classic paper (Bates, 1862), reflecting observations during his stay in the Amazon, showed a geographical pattern for the different colour forms: similar between species within any one area of the Amazon basin, but the mimetic colour patterns themselves changed every 100-200 miles. Beside this geographic divergence, closely related species within an area often belonged to mimicry “rings” (groups of unpalatable species, together with some palatable species, that have converged on the same warning colour pattern) (Brower et al., 1964; Mallet and Gilbert, 1995). Bates’ system has all the intermediate stages between local varieties, geographic races, and sympatric species that make it an excellent biological model to study selection, hybridization and gene flow at the species boundary. See maps attached to each species.

Click on an image to view larger version & data in a new window
Click on an image to view larger version & data in a new window

Many pairs or groups of co-mimetic species such as H. erato (top) and H. melpomene (bottom) have evolved a diversity of geographic races or subspecies. The two species look identical in any one locality but their patterns change in concert across their geographic range; Localities left to right: Zamora, Ecuador; Puyo, Ecuador; Tarapoto, Peru; Guayaquil, Ecuador; Yurimaguas, Peru. © 1999 James Mallet

Other Names for Heliconius Kluk 1780 TS = Papilio charithonia L., 1767 (designated by Hemming, 1933)

References

Bates, H. W. 1862. Contributions to an insect fauna of the Amazon Valley. Lepidoptera: Heliconidae. Trans. Linn. Soc. Lond. 23:495-566.

Beltrán M, Jiggins CD, Brower AVZ, Bermingham E, Mallet M. 2007. Do pollen feeding, pupal-mating and larval gregariousness have a single origin in Heliconius butterflies? Inferences from multilocus DNA sequence data. Biological Journal of the Linnean Society in press.

Beltrán M, Jiggins CD, Bull V, Linares M, Mallet J, McMillan WO, and Bermingham E. 2002. Phylogenetic discordance at the species boundary: comparative gene genealogies among rapidly radiating Heliconius butterflies. Mol. Biol. Evol. 19: 2176-2190.

Benson WW, Brown KS, Gilbert LE 1976. Coevolution of plants and herbivores: passion flower butterflies. Evolution 29, 659-680.

Brower, A. V. Z. 1997 The evolution of ecologically important characters in Heliconius butterflies (Lepidoptera: Nymphalidae): a cladistic review. Zool. J. Linn. Soc. 119, 457-472.

Brower AVZ, and Egan MG. 1997. Cladistics of Heliconius butterflies and relatives (Nymphalidae: Heliconiiti): the phylogenetic position of Eueides based on sequences from mtDNA and a nuclear gene. Proc. R. Soc. Lond. B 264: 969-977.

Brower, L. P., Brower, J. v. Z. & Collins, C. T. 1963 Experimental studies of mimicry 7: relative palatability and Mullerian mimicry among neotropical butterflies of the subfamily Heliconiinae. Zoologica 48, 65-84.

Brown KS, Jr. 1981. The biology of Heliconius and related genera. Ann. Rev. Entomol. 26: 427-456.

Deinert EI. Longino JT, Gilbert LE. 1994. Mate competition in butterflies. Nature 370: 23-24.

DeVries P. J. 1987 The Butterflies of Costa Rica and Their Natural History, Volume I: Papilionidae, Pieridae, Nymphalidae Princeton University Press, Baskerville, USA.

Ehrlich PR, Gilbert LE. 1973 Population structure and dynamics of the tropical butterfly Heliconius ethilla. Biotropica 5: 69-82.

Emsley MG. 1965. Speciation in Heliconius (Lep., Nymphalidae): morphology and geographic distribution. Zoologica NY 50: 191-254.

Gilbert LE. 1972. Pollen Feeding and Reproductive Biology of Heliconius Butterflies. Proceedings of the National Academy of Sciences of the United States of America 69: 1403-1407.

Joron M, Papa R, Beltrán M, Chamberlain N, Mavárez J, Baxter, S, Abanto, M, Bermingham, E, Humphray, SJ, Rogers, J, Beasley, H, Barlow, K, ffrench-Constant, RH, Mallet, J, McMillan, WO, Jiggins, CD. 2006. A conserved supergene locus controls colour pattern diversity in Heliconius butterflies. PLoS Biology Vol. 4, No. 10, e303 doi:10.1371/journal.pbio.0040303

Linnaeus, C. 1758 Systema Naturae, (10th edn., facsimile reprint, 1956). London: British Museum (Natural History).

Mallet J. Singer MC. 1987. Handling effects in Heliconius: where do all the butterflies go? J. Animal Ecology. 56: 377-386.

"Muses." Encyclopedia Mythica from Encyclopedia Mythica Online. http://www.pantheon.org/articles/m/muses.html [Accessed May 22, 2008].

Penz CM. 1999. Higher level phylogeny for the passion-vine butterflies (Nymphalidae, Heliconiinae) based on early stage and adult morphology. Zoological Journal of the Linnean Society 127: 277-344.

Turner, J.R. 1976. Adaptive radiation and convergence in subdivisions of the butterfly genus Heliconius (Lepidoptera: Nymphalidae). Zoological Journal of the Linnean Society 58(4): 297-308.

Information on the Internet

Title Illustrations
Click on an image to view larger version & data in a new window
Click on an image to view larger version & data in a new window
Scientific Name Heliconius hierax
Specimen Condition Live Specimen
Image Use creative commons This media file is licensed under the Creative Commons Attribution-NonCommercial-ShareAlike License - Version 3.0.
Copyright © Chris Jiggins
Scientific Name Heliconius atthis
Specimen Condition Live Specimen
Image Use creative commons This media file is licensed under the Creative Commons Attribution-NonCommercial-ShareAlike License - Version 3.0.
Copyright © Chris Jiggins
Specimen Condition Live Specimen
Copyright © Owen McMillan
About This Page


University of Cambridge, Cambridge, UK


Middle Tennessee State University, Murfreesboro, Tennessee, USA

Chris Jiggins
University of Cambridge, Cambridge, UK

Correspondence regarding this page should be directed to Margarita Beltrán at , Andrew V. Z. Brower at , and Chris Jiggins at

Page: Tree of Life Heliconius Kluk 1780 TS = Papilio charithonia L., 1767 (designated by Hemming, 1933). longwings or passion-flower butterflies. Authored by Margarita Beltrán, Andrew V. Z. Brower, and Chris Jiggins. The TEXT of this page is licensed under the Creative Commons Attribution-NonCommercial-ShareAlike License - Version 3.0. Note that images and other media featured on this page are each governed by their own license, and they may or may not be available for reuse. Click on an image or a media link to access the media data window, which provides the relevant licensing information. For the general terms and conditions of ToL material reuse and redistribution, please see the Tree of Life Copyright Policies.

Citing this page:

Beltrán, Margarita, Andrew V. Z. Brower, and Chris Jiggins. 2010. Heliconius Kluk 1780 TS = Papilio charithonia L., 1767 (designated by Hemming, 1933). longwings or passion-flower butterflies. Version 21 July 2010. http://tolweb.org/Heliconius/72231/2010.07.21 in The Tree of Life Web Project, http://tolweb.org/
